tidyterra FAQs

This document is a compendium of frequently asked questions about using the tidyterra package and their solutions (primarily focused on the integration of terra and ggplot2). You can ask for help or search previous questions using the following links.

You can also ask in Stack Overflow using the tag tidyterra.

• Report a Bug [link].
• Ask a question [link].

Example data

Source

This article uses a sample of LiDAR for Scotland Phase 5 - DSM provided by The Scottish Remote Sensing Portal. This data is made available under the Open Government Licence v3.

About the file

The file holyroodpark.tif represents the DEM¹ of Holyrood Park, Edinburgh (Scotland), including Arthur’s Seat, an extinct volcano, pretty much as the famous Maungawhau / Mount Eden volcano represented in datasets::volcano.

The original file has been cropped and down-sampled for demo purposes, holyroodpark.tif is available online in https://github.com/dieghernan/tidyterra/tree/main/data-raw folder.

NA values are shown in gray color

This is the default behavior produced by the ggplot2 package. tidyterra color scales (i.e., scale_fill_whitebox_c(), etc.), have by default the argument na.value set to "transparent", that prevents NA values to be filled².

library(terra)
library(tidyterra)
library(ggplot2)

# Get a raster data from Holyrood Park, Edinburgh
holyrood <- "holyroodpark.tif"

r <- holyrood |>
  rast() |>
  filter(elevation > 80 & elevation < 180)

# Default
def <- ggplot() +
  geom_spatraster(data = r)

def +
  labs(
    title = "Default on ggplot2",
    subtitle = "NA values in grey"
  )

# Modify with scales
def +
  scale_fill_continuous(na.value = "transparent") +
  labs(
    title = "Default colors on ggplot2",
    subtitle = "But NAs are not plotted"
  )

# Use a different scale provided by ggplot2
def +
  scale_fill_viridis_c(na.value = "orange") +
  labs(
    title = "Use any fill_* scale of ggplot2",
    subtitle = "Note that na.value = 'orange'"
  )

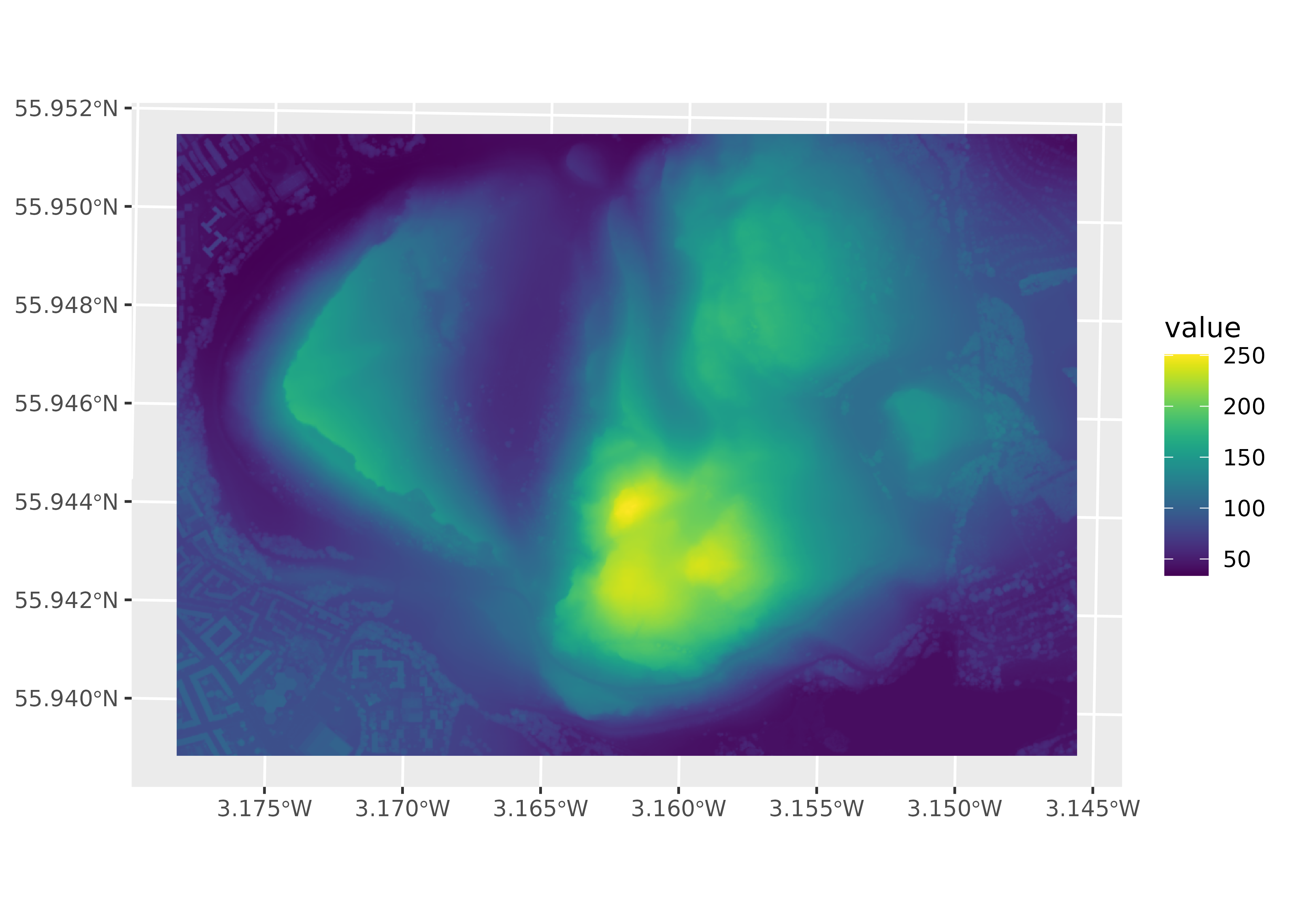

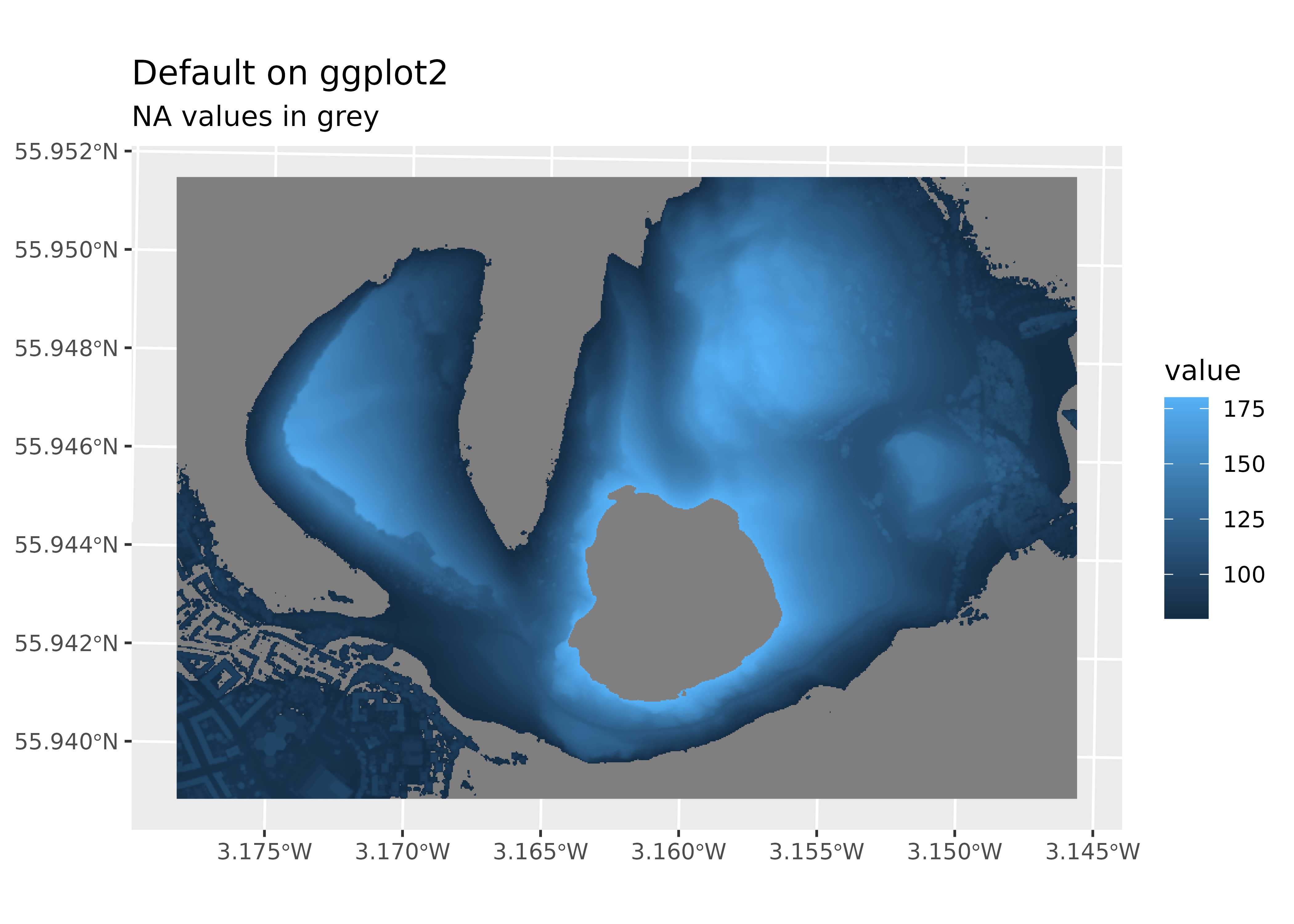

(a) Default ggplot2 value.

(b) Plot with transparent NA values.

(c) NA values mapped with another color.

Figure 1: NA values on ggplot2

Labeling contours

Use geom_spatraster_contour_text() :

library(terra)
library(tidyterra)
library(ggplot2)

holyrood <- "holyroodpark.tif"

r <- rast(holyrood)

ggplot() +
  geom_spatraster_contour_text(data = r) +

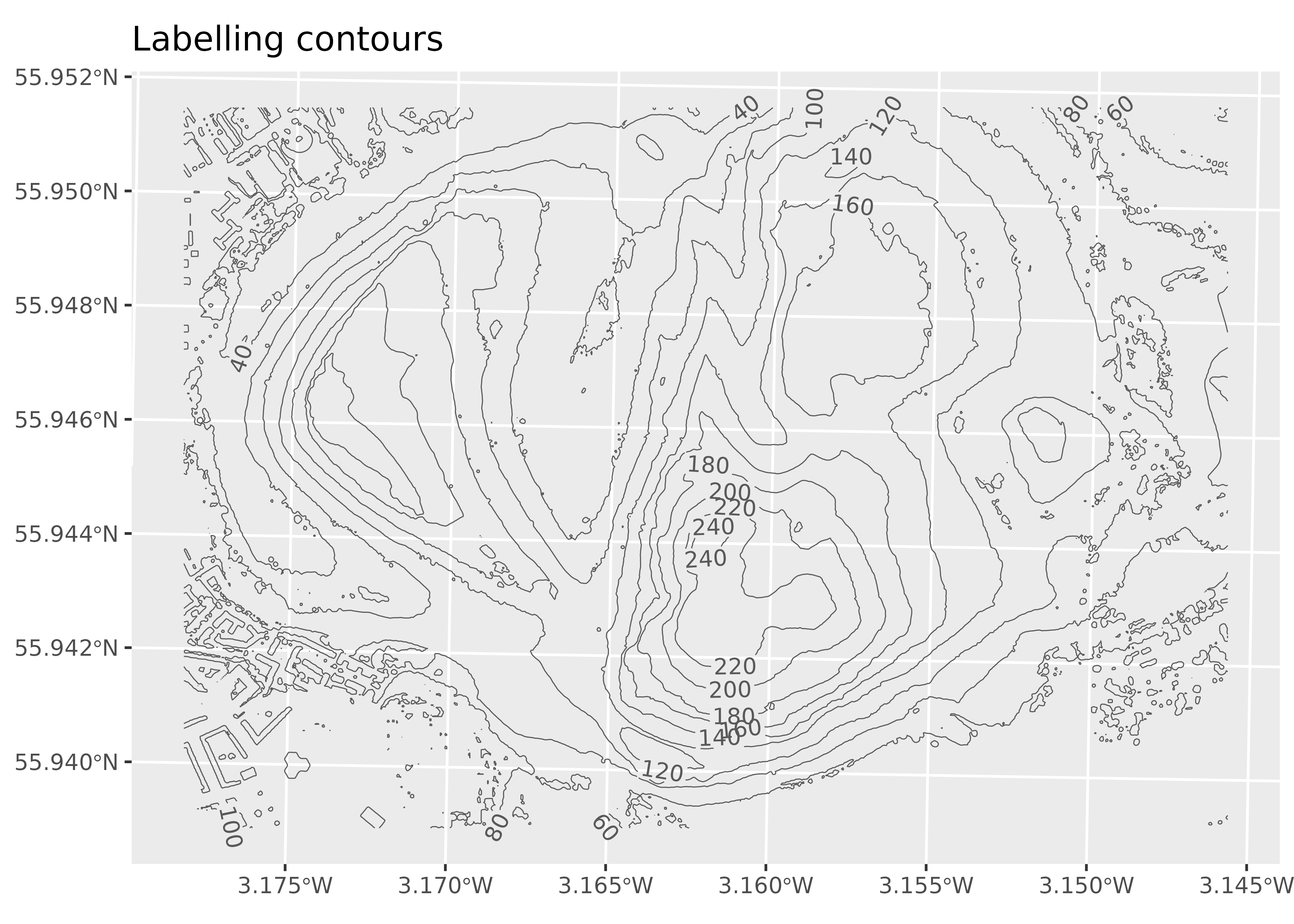

  labs(title = "Labelling contours")

# With options and aes

# Use a labeller function so only selected breaks are labelled
labeller <- function(labs) {
  # Must return a function
  function(x) {
    x[!x %in% labs] <- NA
    scales::label_comma(suffix = " m.")(x)
  }
}

# Common labels across ggplot

labs <- c(100, 140, 180, 220)

ggplot(r) +
  geom_spatraster_contour_text(
    data = r,
    aes(
      linewidth = after_stat(level),
      size = after_stat(level),
      color = after_stat(level)
    ),
    breaks = seq(100, 250, 10),
    # Just label some isolines
    label_format = labeller(labs = labs),
    family = "mono",
    fontface = "bold"
  ) +
  scale_linewidth_continuous(range = c(0.1, 0.5), breaks = labs) +
  scale_color_gradient(low = "grey50", high = "grey10", breaks = labs) +
  scale_size_continuous(range = c(2, 3), breaks = labs) +
  # Integrate scales
  guides(
    linewidth = guide_legend("meters"),
    size = guide_legend("meters"),
    color = guide_legend("meters")
  ) +
  # Theme and titles
  theme_bw() +
  theme(text = element_text(family = "mono")) +
  labs(
    title = "Labelling contours",
    subtitle = "With options: b/w plot"
  )

(a) Simple contour labels.

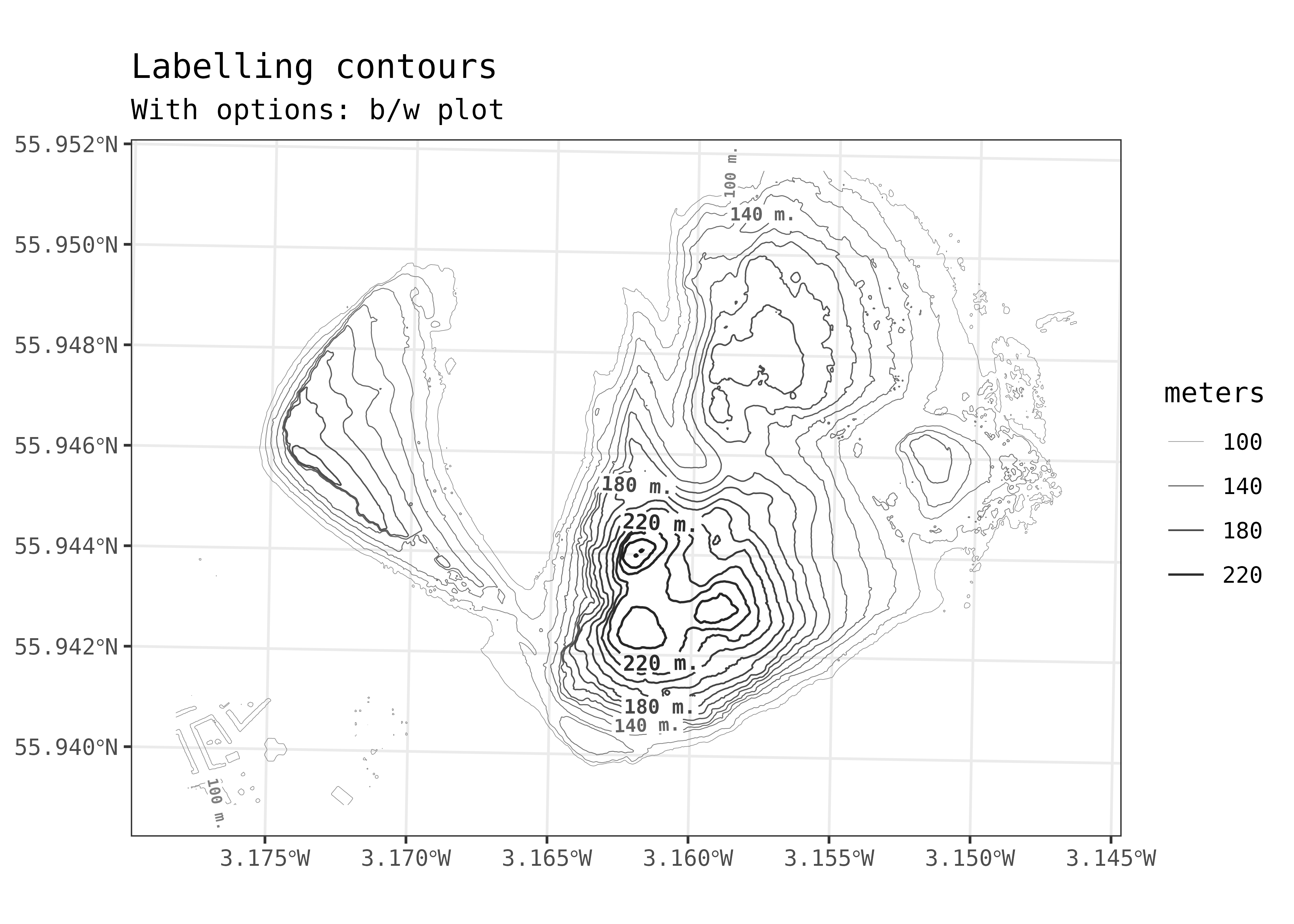

(b) Alternative: Labelled contours.

Figure 2: Contour labels with tidyterra

Other alternatives

Thanks to fortify.SpatRaster() you can use your SpatRaster straight away with the metR package (see Hexagonal grids and other geoms). Use the argument(s) bins/binwidth/breaks to align both labels and lines:

library(metR)
br <- seq(100, 250, 10)
labs <- c(100, 140, 180, 220)

# Replicate previous map with tidyterra + metR strategy
ggplot(r, aes(x, y)) +
  geom_spatraster_contour(
    data = r,
    aes(
      linewidth = after_stat(level),
      color = after_stat(level)
    ),
    breaks = br,
    # Don't inherit fortified aes
    inherit.aes = FALSE
  ) +
  geom_text_contour(
    aes(
      z = elevation,
      color = after_stat(level),
      size = after_stat(level)
    ),
    breaks = br,
    # Text options
    check_overlap = TRUE,
    label.placer = label_placer_minmax(),
    stroke = 0.3,
    stroke.colour = "white",
    family = "mono",
    fontface = "bold",
    key_glyph = "path"
  ) +
  scale_linewidth_continuous(range = c(0.1, 0.5), breaks = labs) +
  scale_color_gradient(low = "grey50", high = "grey10", breaks = labs) +
  scale_size_continuous(range = c(2, 3), breaks = labs) +
  # Integrate scales
  guides(
    linewidth = guide_legend("meters"),
    size = guide_legend("meters"),
    color = guide_legend("meters")
  ) +
  # Theme and titles
  theme_bw() +
  theme(text = element_text(family = "mono")) +
  labs(
    title = "Labelling contours",
    subtitle = "tidyterra and metR: b/w plot",
    x = "",
    y = ""
  )

Figure 3: Alternative (metR): Contour labeling combining tidyterra and metR packages with customized styling.

Using a different color scale

Since tidyterra leverages on ggplot2, please refer to ggplot2 use of scales:

library(terra)
library(tidyterra)
library(ggplot2)

holyrood <- "holyroodpark.tif"

r <- rast(holyrood)

# Hillshade with grey colors
slope <- terrain(r, "slope", unit = "radians")
aspect <- terrain(r, "aspect", unit = "radians")
hill <- shade(slope, aspect, 10, 340)

ggplot() +
  geom_spatraster(data = hill, show.legend = FALSE) +
  # Note the scale, grey colours
  scale_fill_gradientn(
    colours = grey(0:100 / 100),
    na.value = "transparent"
  ) +
  labs(title = "A hillshade plot with grey colors")

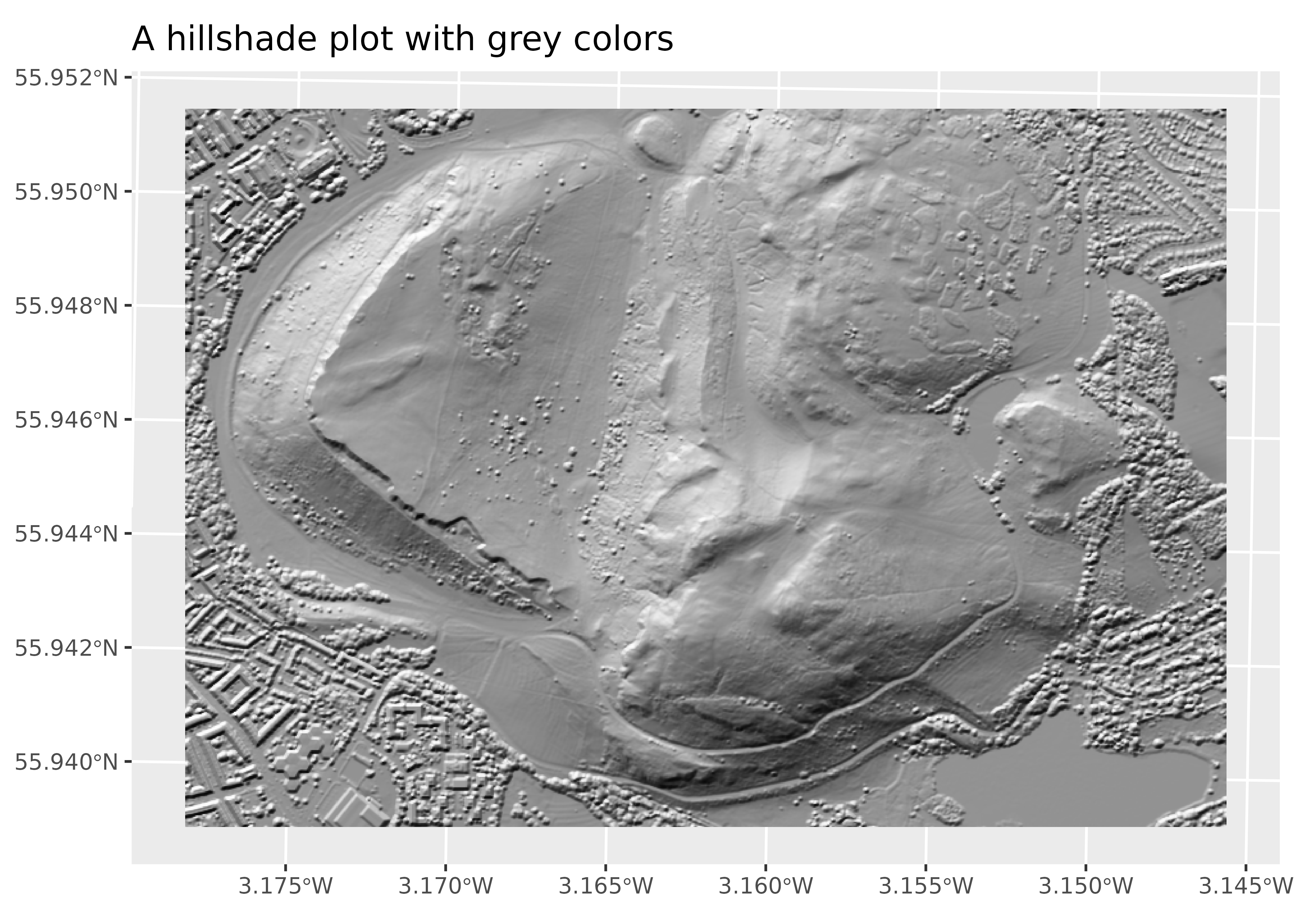

Figure 4: Hillshade visualization using grayscale colors to enhance terrain relief.

Can I change the default palette of my maps?

Yes, use options("ggplot2.continuous.fill") to modify the default colors in your session.

library(terra)
library(tidyterra)
library(ggplot2)

holyrood <- "holyroodpark.tif"

r <- rast(holyrood)

p <- ggplot() +
  geom_spatraster(data = r)


# Set options
tmp <- getOption("ggplot2.continuous.fill") # store current setting
options(ggplot2.continuous.fill = scale_fill_grass_c)

p

# restore previous setting
options(ggplot2.continuous.fill = tmp)

p

(a) Use of new default palette via options.

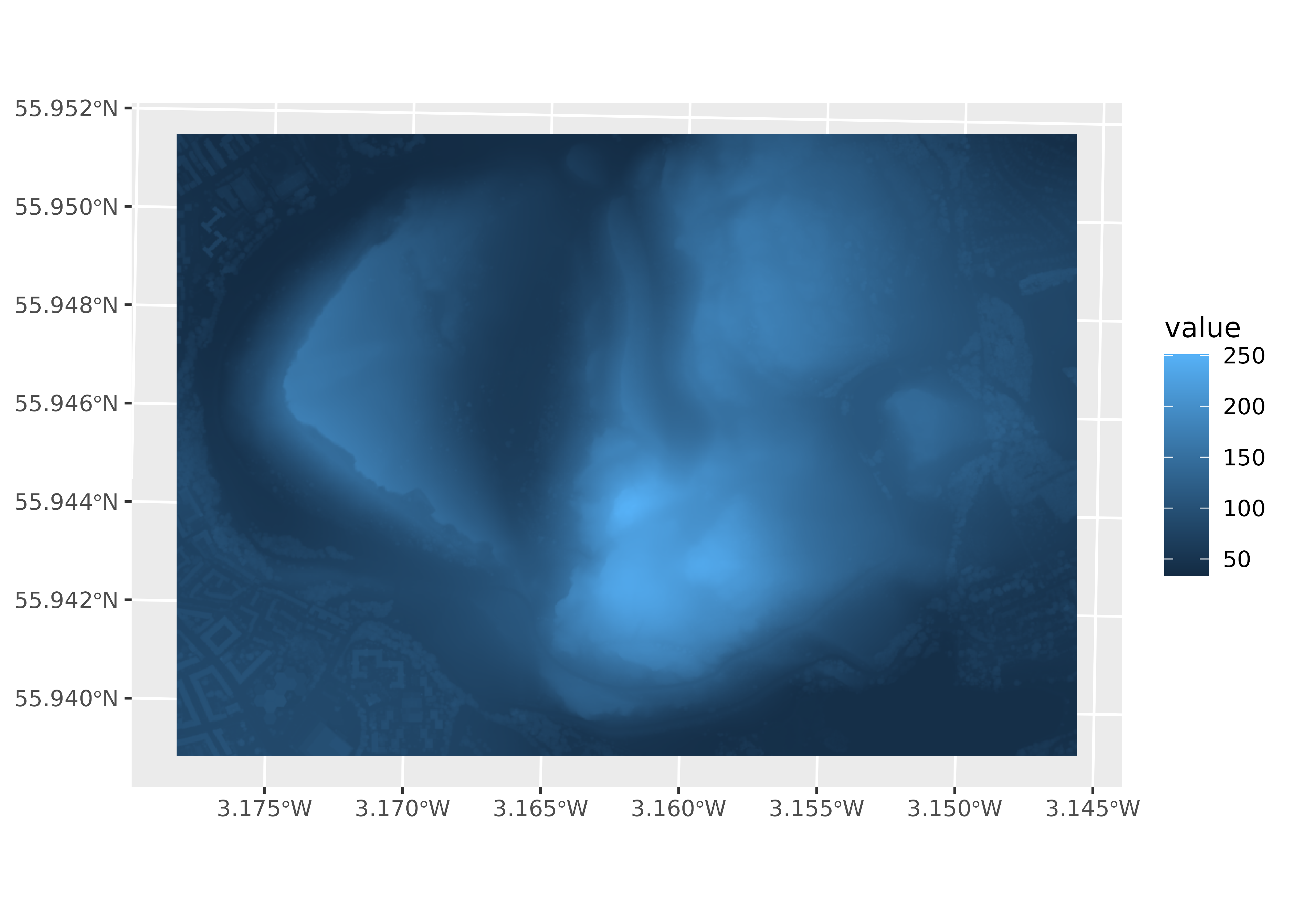

(b) Restoring the default palette.

Figure 5: Changing default ggplot2 color palettes

My map tiles are blurry

Blurriness is typically related to the tile source rather than the package. Most base tiles are provided in EPSG:3857, so verify that your tile uses this CRS rather than a different one. If your tile is not in EPSG:3857, it has likely been reprojected, which involves resampling and causes blurriness. Also, modify the maxcell argument to avoid resampling and ensure the ggplot2 map uses EPSG:3857 with ggplot2::coord_sf(crs = 3857):

library(terra)
library(tidyterra)
library(ggplot2)
library(sf)
library(maptiles)

# Get a tile from a point on sf format
p <- st_point(c(-3.166011, 55.945235)) |>
  st_sfc(crs = 4326) |>
  st_buffer(500)

tile1 <- get_tiles(
  p,
  provider = "OpenStreetMap",
  zoom = 14,
  cachedir = ".",
  crop = TRUE
)

ggplot() +
  geom_spatraster_rgb(data = tile1) +
  labs(title = "CRS EPSG:4326") +
  theme_void()

st_crs(tile1)$epsg
#> [1] 4326

# The tile was in EPSG 4326

# get tile in 3857
p2 <- st_transform(p, 3857)


tile2 <- get_tiles(
  p2,
  provider = "OpenStreetMap",
  zoom = 14,
  cachedir = ".",
  crop = TRUE
)

st_crs(tile2)$epsg
#> [1] 3857

# Now the tile is EPSG:3857

ggplot() +
  geom_spatraster_rgb(data = tile2, maxcell = Inf) +
  # Force crs to be 3857
  coord_sf(crs = 3857) +
  labs(title = "CRS EPSG:3857") +
  theme_void()

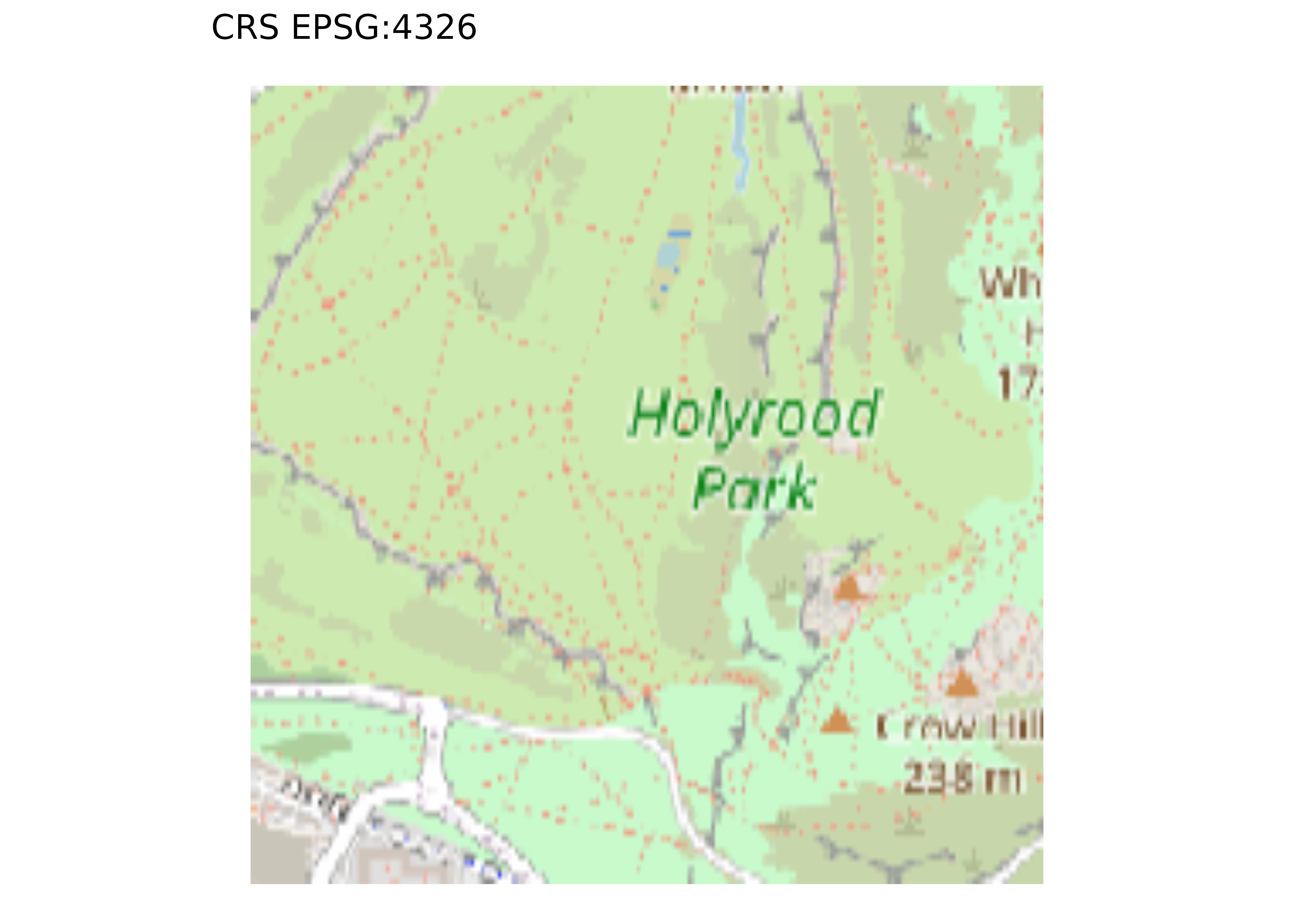

(a) Plot with resampled raster (EPGS:4326).

(b) Plot with native CRS - not resampled (EPGS:3857).

Figure 6: Example of impact of resampling on blurriness of the tile

Avoid degrees labeling on axis

This is a ggplot2 default behavior, but you can modify it using the ggplot2::coord_sf(datum) argument:

library(terra)
library(tidyterra)
library(ggplot2)
library(sf)

holyrood <- "holyroodpark.tif"

r <- rast(holyrood)

ggplot() +
  geom_spatraster(data = r) +
  labs(
    title = "Axis auto-converted to lon/lat",
    subtitle = paste("But SpatRaster is EPSG:", st_crs(r)$epsg)
  )


# Use datum

ggplot() +
  geom_spatraster(data = r) +
  coord_sf(datum = pull_crs(r)) +
  labs(
    title = "Axis on the units of the SpatRaster",
    subtitle = paste("EPSG:", st_crs(r)$epsg)
  )

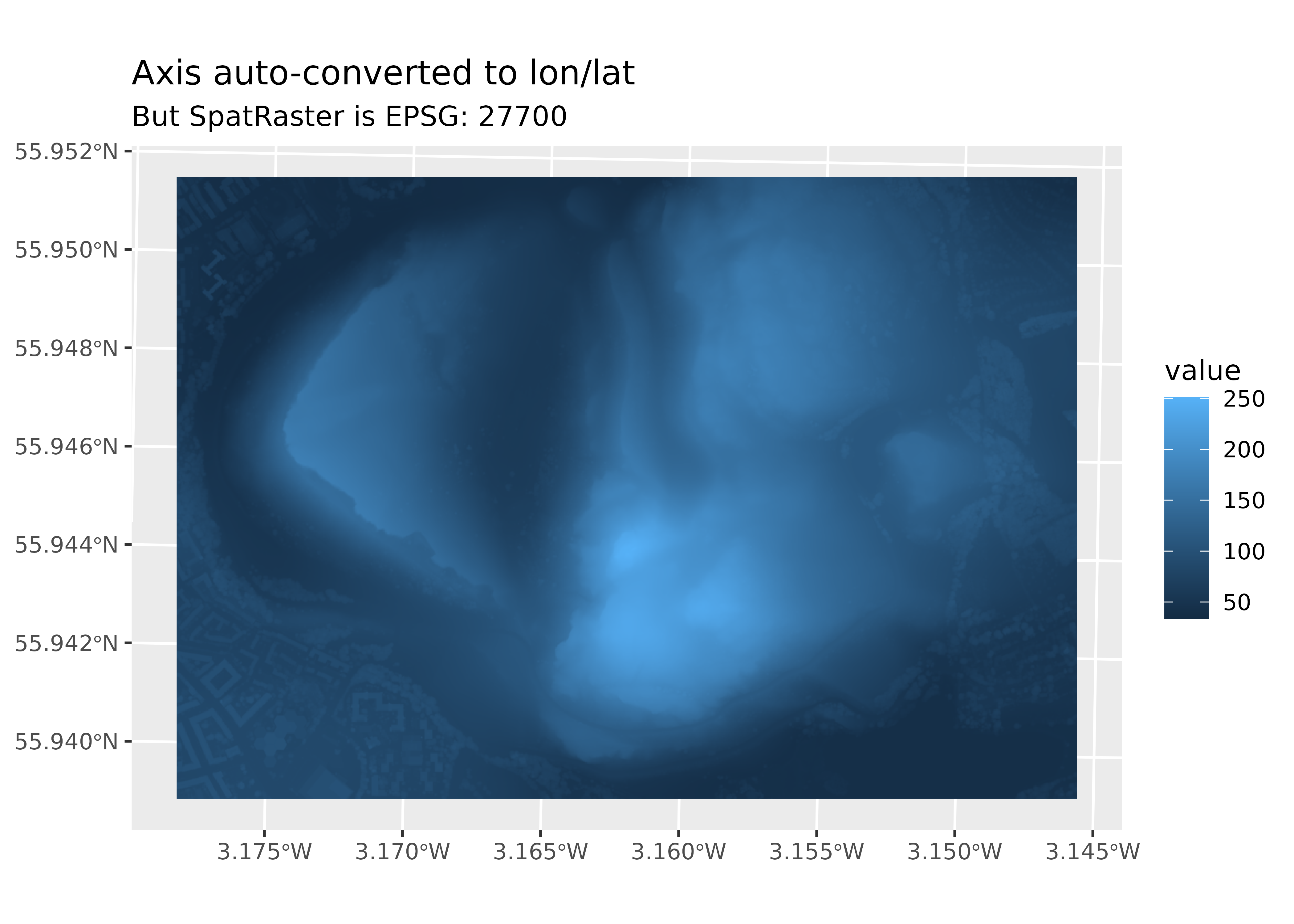

(a) Automatic longitude/latitude axes.

(b) Native coordinate system units.

Figure 7: Degree labelling with ggplot2

Modifying the number of breaks on axis

This is a long-standing issue in ggplot2 with no satisfactory solution so far. Please see ggplot2/issues/4622 (and consider contributing if you have insights). You can try the following approach:

packageVersion("ggplot2")
#> [1] '4.0.2'

library(terra)
library(tidyterra)
library(ggplot2)
library(sf)

holyrood <- "holyroodpark.tif"

r <- rast(holyrood)

ggplot() +
  geom_spatraster(data = r) +
  labs(title = "Default axis breaks")

# Modify breaks on x and y

# Need to be in EPSG:4326, but don't know why...
extent <- r |>
  project("EPSG:4326") |>
  ext() |>
  as.vector()
y_br <- pretty(c(extent[c("ymin", "ymax")]), n = 3)
x_br <- pretty(c(extent[c("xmin", "xmax")]), n = 3)


ggplot() +
  geom_spatraster(data = r) +
  scale_y_continuous(breaks = y_br) +
  scale_x_continuous(breaks = x_br) +

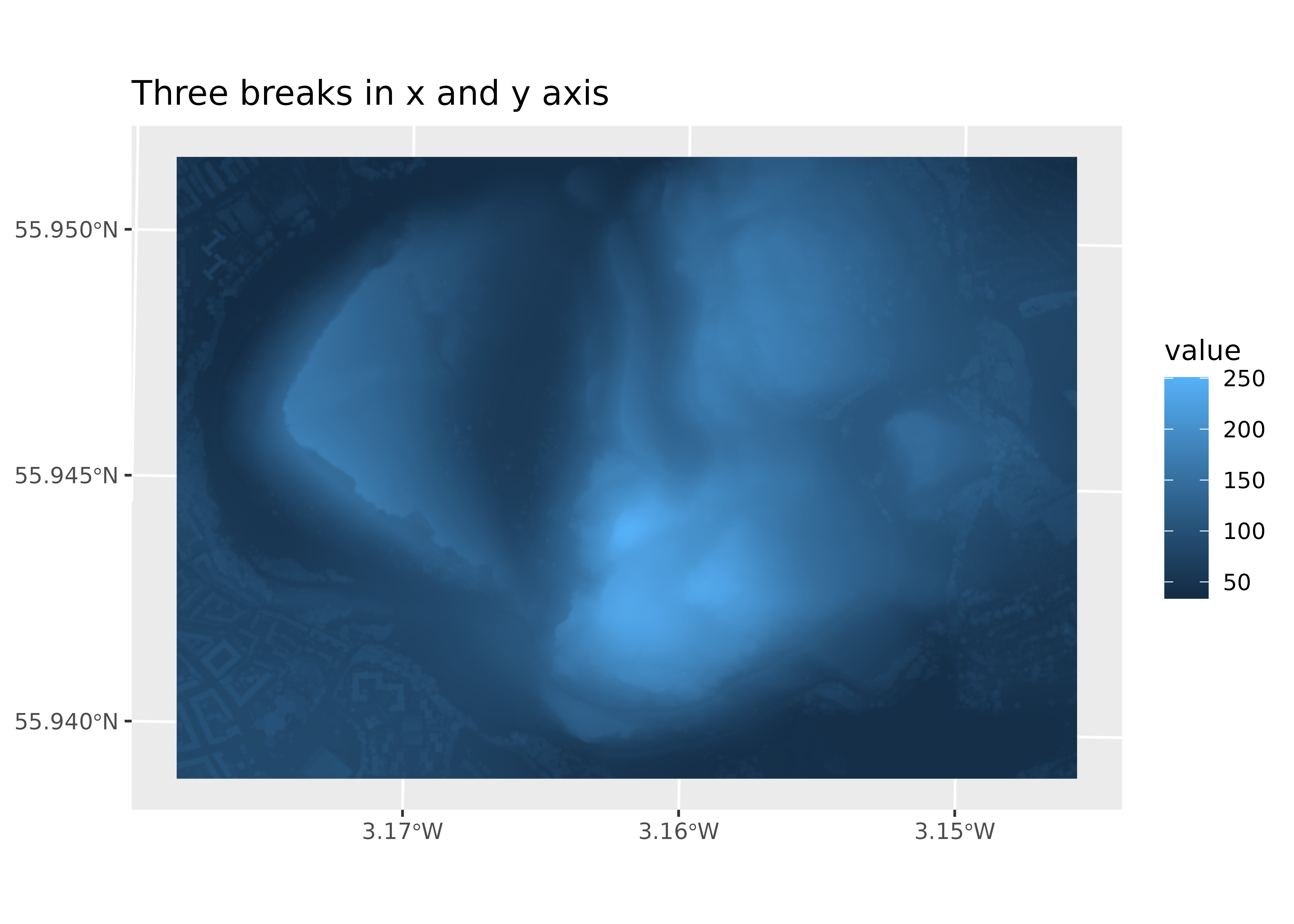

  labs(title = "Three breaks in x and y axis")

(a) Default axis breaks.

(b) Custom-defined breaks.

Figure 8: Spatial axis breaks with ggplot2

Plotting a SpatRaster with color tables

tidyterra provides several methods for handling SpatRaster objects with color tables. This example uses clc_edinburgh.tif, available online in the data-raw folder, which contains data from the Corine Land Cover Dataset (2018) for Edinburgh³.

library(terra)
library(tidyterra)
library(ggplot2)

# Get a SpatRaster with coltab
r_coltab <- rast("clc_edinburgh.tif")

has.colors(r_coltab)
#> [1] TRUE

r_coltab
#> class       : SpatRaster
#> size        : 196, 311, 1  (nrow, ncol, nlyr)
#> resolution  : 178.8719, 177.9949  (x, y)
#> extent      : -380397.3, -324768.1, 7533021, 7567908  (xmin, xmax, ymin, ymax)
#> coord. ref. : WGS 84 / Pseudo-Mercator (EPSG:3857)
#> source      : clc_edinburgh.tif
#> color table : 1
#> categories  : label
#> name        :                   label
#> min value   : Continuous urban fabric
#> max value   :           Sea and ocean

# Native handling by terra packages

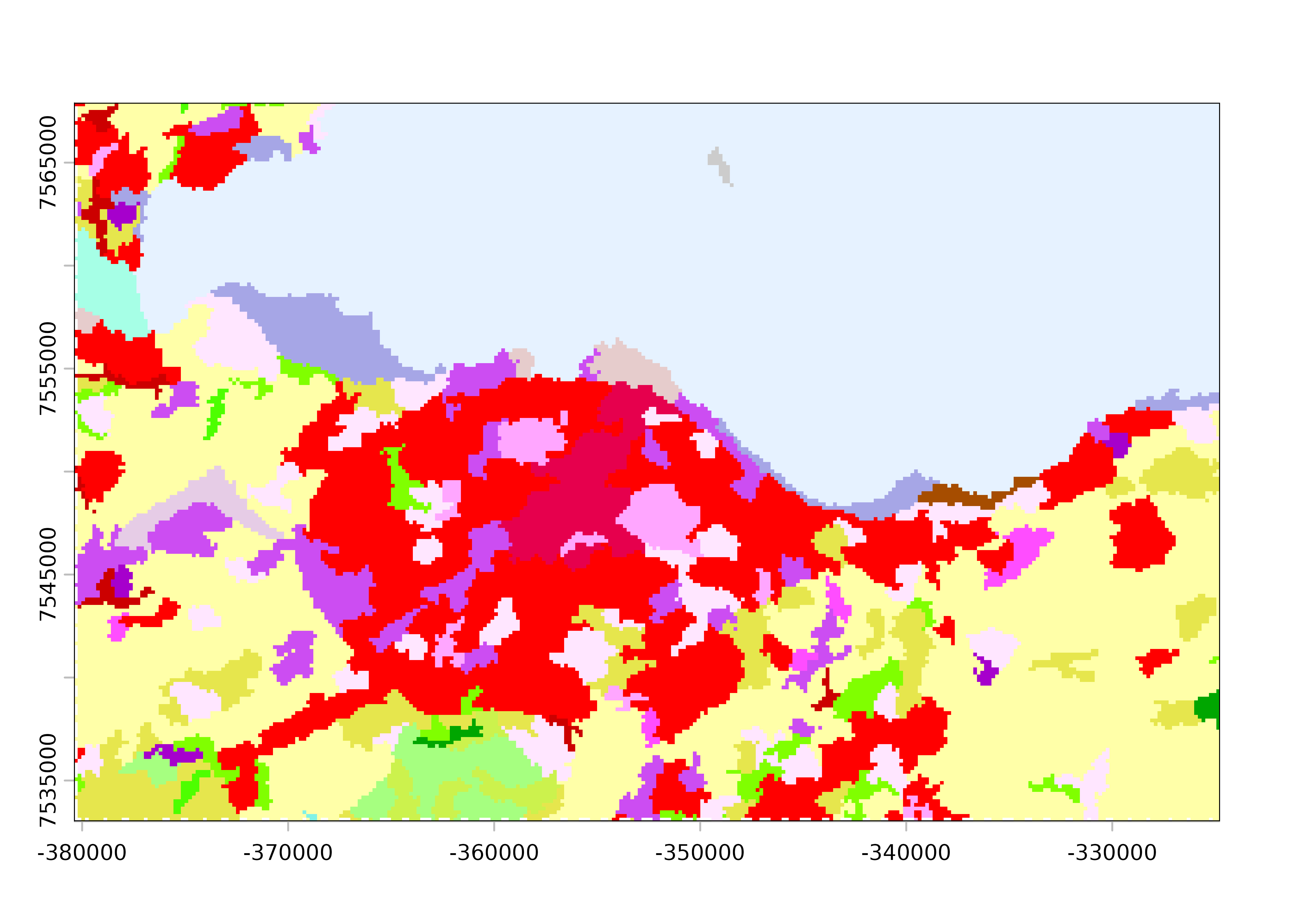

plot(r_coltab)

# A. autoplot

autoplot(r_coltab, maxcell = Inf) +
  guides(fill = guide_legend(ncol = 1)) +
  ggtitle("autoplot method")

# B. geom_spatraster
ggplot() +
  geom_spatraster(data = r_coltab, maxcell = Inf) +
  guides(fill = guide_legend(ncol = 1)) +

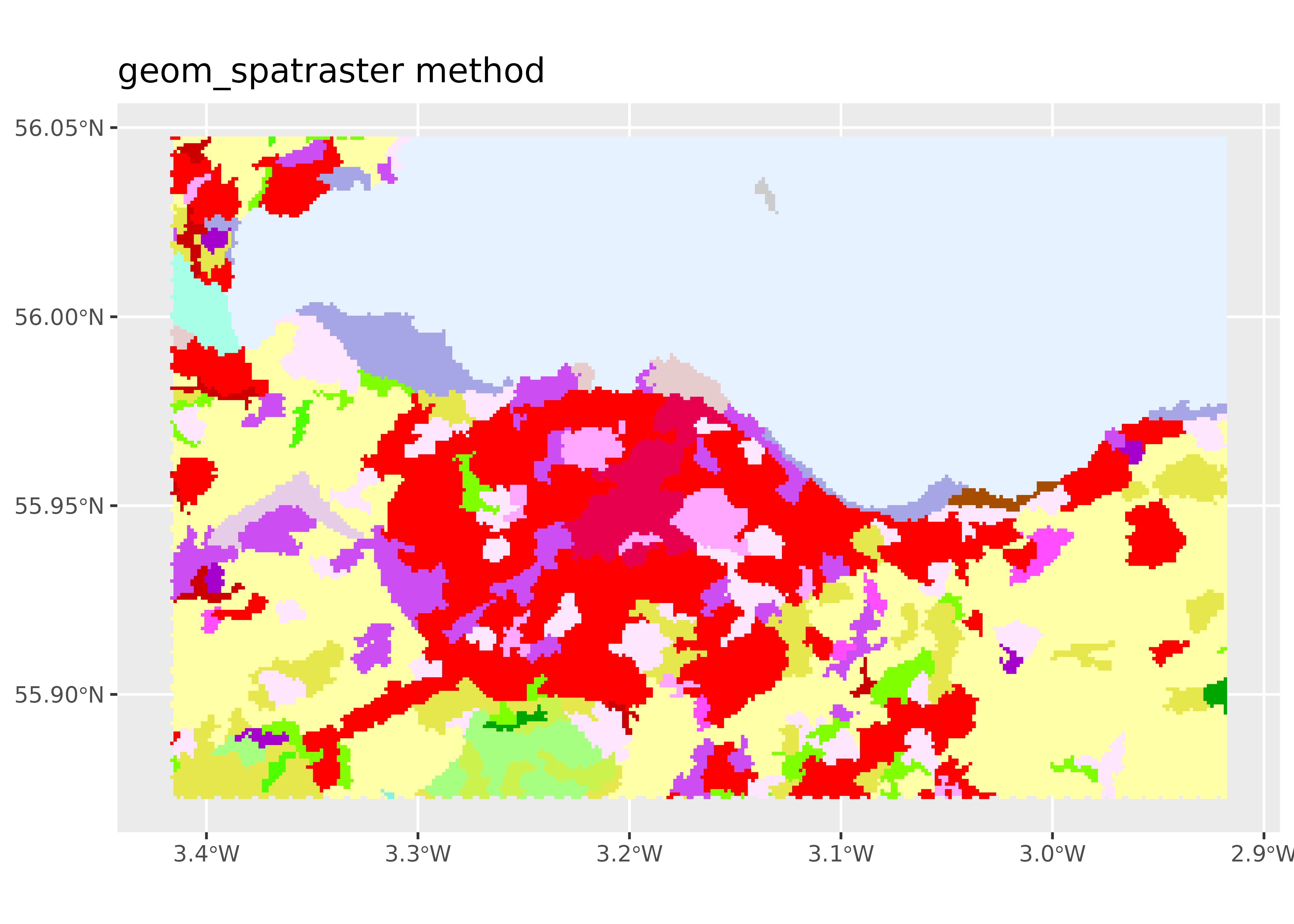

  ggtitle("geom_spatraster method")

# C. Using scale_fill_coltab

g <- ggplot() +
  geom_spatraster(data = r_coltab, use_coltab = FALSE, maxcell = Inf) +
  guides(fill = guide_legend(ncol = 1))


g

# But...
g +
  scale_fill_coltab(data = r_coltab) +
  ggtitle("scale_fill_coltab method")

# D. Extract named colors and scale_fill_manual

cols <- get_coltab_pal(r_coltab)

cols
#>                    Continuous urban fabric
#>                                  "#E6004D"
#>                 Discontinuous urban fabric
#>                                  "#FF0000"
#>             Industrial or commercial units
#>                                  "#CC4DF2"
#> Road and rail networks and associated land
#>                                  "#CC0000"
#>                                 Port areas
#>                                  "#E6CCCC"
#>                                   Airports
#>                                  "#E6CCE6"
#>                   Mineral extraction sites
#>                                  "#A600CC"
#>                                 Dump sites
#>                                  "#A64D00"
#>                         Construction sites
#>                                  "#FF4DFF"
#>                          Green urban areas
#>                                  "#FFA6FF"
#>               Sport and leisure facilities
#>                                  "#FFE6FF"
#>                  Non-irrigated arable land
#>                                  "#FFFFA8"
#>                                   Pastures
#>                                  "#E6E64D"
#>                        Broad-leaved forest
#>                                  "#80FF00"
#>                          Coniferous forest
#>                                  "#00A600"
#>                               Mixed forest
#>                                  "#4DFF00"
#>                         Natural grasslands
#>                                  "#CCF24D"
#>                        Moors and heathland
#>                                  "#A6FF80"
#>                                 Bare rocks
#>                                  "#CCCCCC"
#>                           Intertidal flats
#>                                  "#A6A6E6"
#>                               Water bodies
#>                                  "#80F2E6"
#>                                  Estuaries
#>                                  "#A6FFE6"
#>                              Sea and ocean
#>                                  "#E6F2FF"

scales::show_col(cols)

# And now

g +
  scale_fill_manual(
    values = cols,
    na.value = "transparent",
    na.translate = FALSE
  ) +
  ggtitle("scale_fill_manual method")

Use with gganimate

Absolutely! Here is an example (thanks to @frzambra):

library(gganimate)
library(tidyterra)
library(geodata)
library(ggplot2)

temp <- worldclim_country("che", "tavg", path = ".")

che_cont <- gadm("che", level = 0, path = ".")


temp_m <- crop(temp, che_cont, mask = TRUE)
names(temp_m) <- month.name

anim <- ggplot() +
  geom_spatraster(data = temp_m) +
  scale_fill_viridis_c(
    option = "inferno",
    na.value = "transparent",
    labels = scales::label_number(suffix = "º C")
  ) +
  transition_manual(lyr) +
  theme_bw() +
  theme(
    axis.text = element_blank(),
    axis.ticks = element_blank()
  ) +
  labs(
    title = "Avg temp Switzerland: {current_frame}",
    fill = ""
  )

gganimate::animate(anim, duration = 12, device = "ragg_png")

Figure 9: Animation of average monthly temperatures.

North arrows and scale bar

tidyterra does not provide north arrows or scale bars directly for ggplot2 plots. However, you can use ggspatial functions (ggspatial::annotation_north_arrow() and ggspatial::annotation_scale()):

library(terra)
library(tidyterra)
library(ggplot2)
library(ggspatial)

holyrood <- "holyroodpark.tif"

r <- rast(holyrood)

autoplot(r) +
  annotation_north_arrow(
    which_north = TRUE,
    pad_x = unit(0.8, "npc"),
    pad_y = unit(0.75, "npc"),
    style = north_arrow_fancy_orienteering()
  ) +
  annotation_scale(
    height = unit(0.015, "npc"),
    width_hint = 0.5,
    pad_x = unit(0.07, "npc"),
    pad_y = unit(0.07, "npc"),
    text_cex = .8
  )

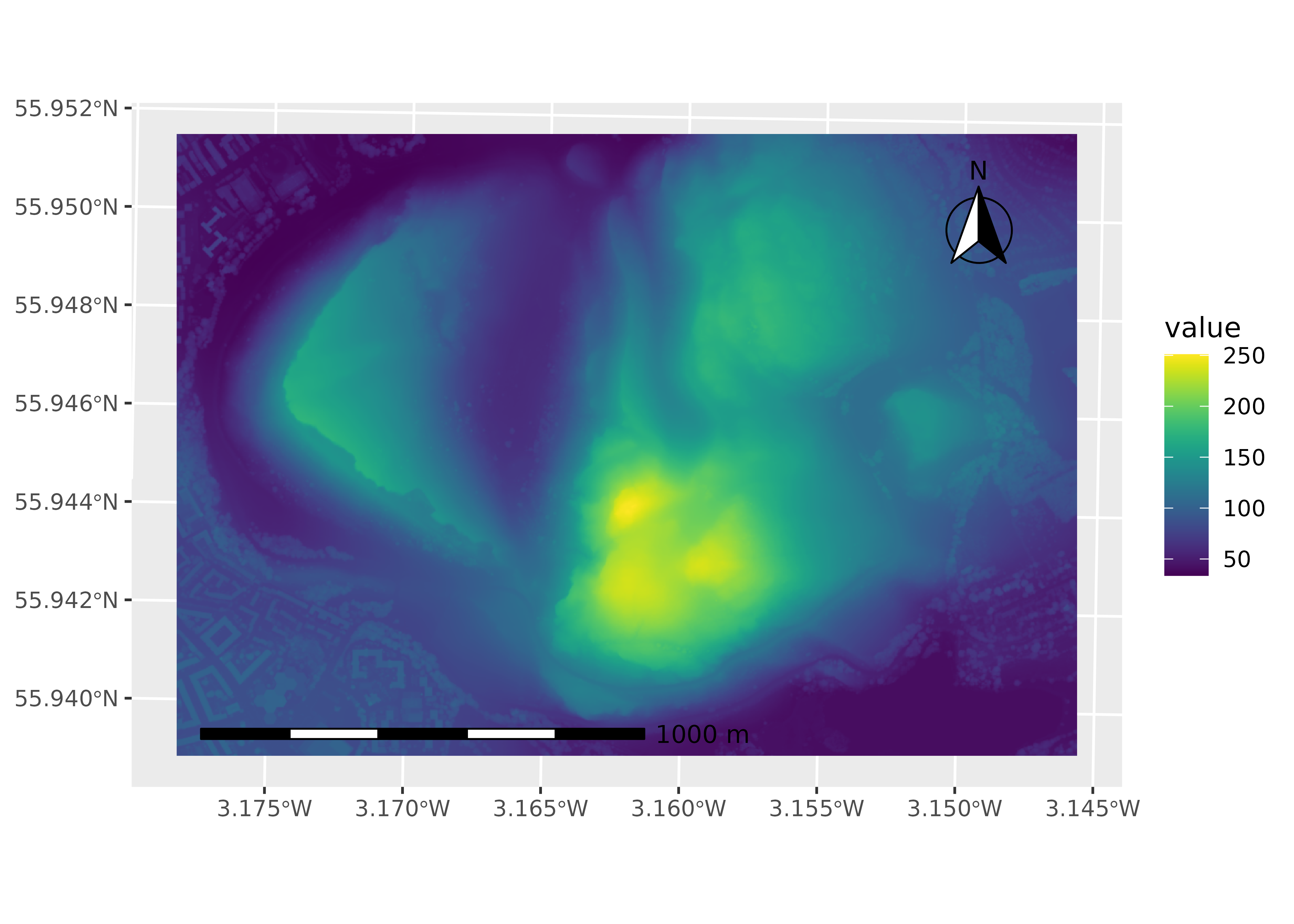

Figure 10: Map with north arrow (top right) and scale bar (bottom left) annotations added using ggspatial.

How to overlay a SpatRaster over a RGB tile

This is straightforward: use geom_spatraster_rgb() for the background tile, and then add your data layers on top:

library(terra)
library(tidyterra)
library(ggplot2)
library(sf)
# Get example data
library(maptiles)
library(geodata)


# Area of interest
aoi <- gadm(country = "CHE", path = ".", level = 0) |>
  project("EPSG:3857")

# Tile
rgb_tile <- get_tiles(
  aoi,
  crop = TRUE,
  provider = "Esri.WorldShadedRelief",
  zoom = 8,
  project = FALSE,
  cachedir = "."
)

# Clim (mean prec)
clim <- worldclim_country("CHE", var = "prec", path = ".") |>
  project(rgb_tile) |>
  mask(aoi) |>
  terra::mean()

# Labels
cap_lab <- paste0(
  c(
    "Tiles © Esri - Source: Esri",
    "Data: © Copyright 2020-2022, worldclim.org."
  ),
  collapse = "\n"
)
tit_lab <- "Average precipitation in Switzerland"

ggplot(aoi) +
  geom_spatraster_rgb(data = rgb_tile, alpha = 1) +
  geom_spatraster(data = clim) +
  geom_spatvector(fill = NA) +
  scale_fill_whitebox_c(
    palette = "deep",
    alpha = 0.5,
    labels = scales::label_number(suffix = " mm.")
  ) +
  coord_sf(expand = FALSE) +
  labs(
    title = tit_lab,
    subtitle = "With continuous overlay",
    fill = "Precipitation",
    caption = cap_lab
  )

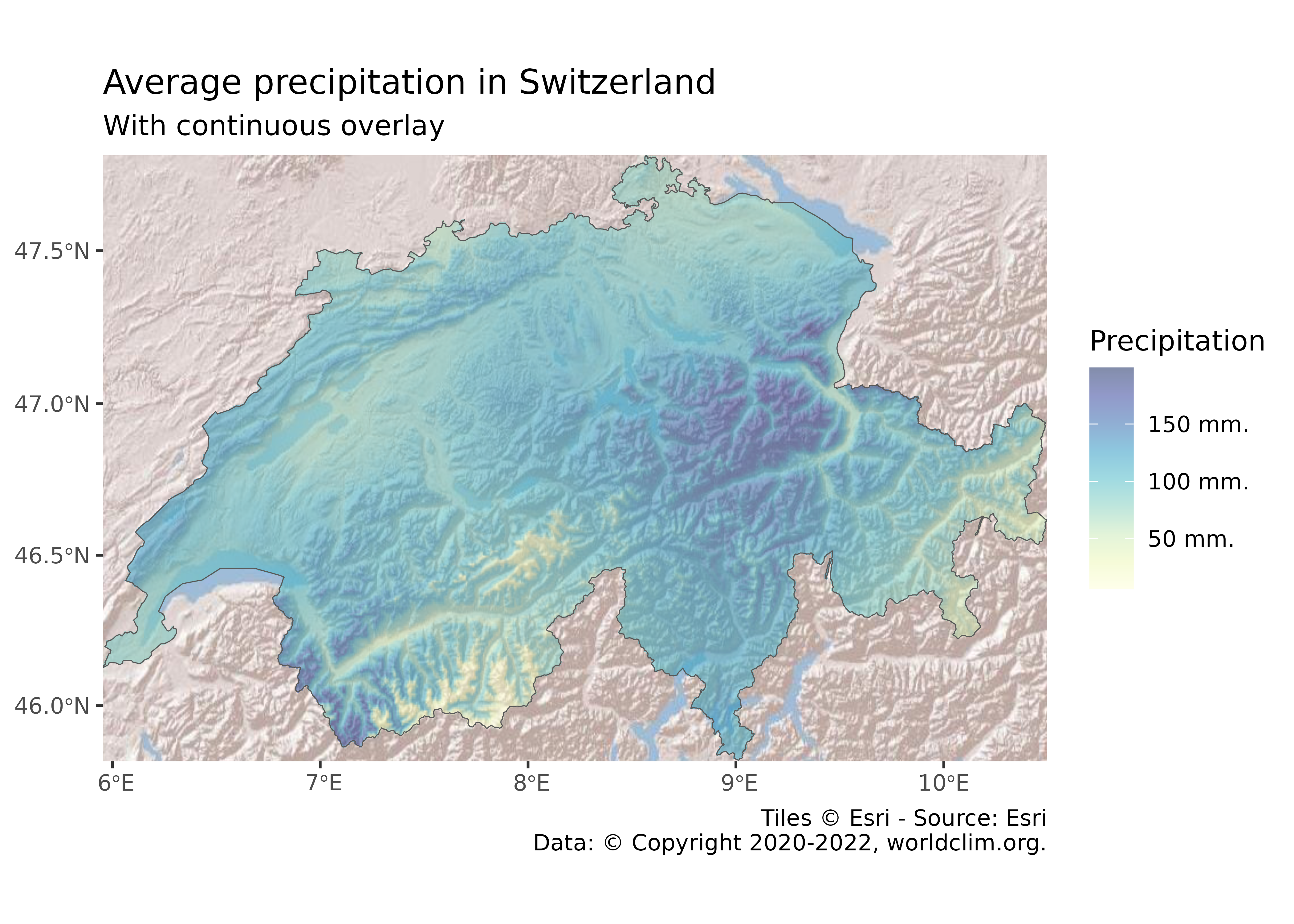

Figure 11: Continuous precipitation data overlaid as semi-transparent layer on RGB satellite imagery.

You can create variations with binned legends and filled contours using geom_spatraster_contour_filled():

# Binned
ggplot(aoi) +
  geom_spatraster_rgb(data = rgb_tile, alpha = 1) +
  geom_spatraster(data = clim) +
  geom_spatvector(fill = NA) +
  scale_fill_whitebox_b(
    palette = "deep",
    alpha = 0.5,
    n.breaks = 4,
    labels = scales::label_number(suffix = " mm.")
  ) +
  coord_sf(expand = FALSE) +
  labs(
    title = tit_lab,
    subtitle = "With overlay: binned legend",
    fill = "Precipitation",
    caption = cap_lab
  )

# Filled contour
ggplot(aoi) +
  geom_spatraster_rgb(data = rgb_tile, alpha = 1) +
  geom_spatraster_contour_filled(data = clim, bins = 4) +
  geom_spatvector(fill = NA) +
  coord_sf(expand = FALSE) +
  scale_fill_whitebox_d(
    palette = "deep",
    alpha = 0.5,
    guide = guide_legend(reverse = TRUE)
  ) +
  labs(
    title = tit_lab,
    subtitle = "With overlay and filled contour",
    fill = "Precipitation (mm.)",
    caption = cap_lab
  )

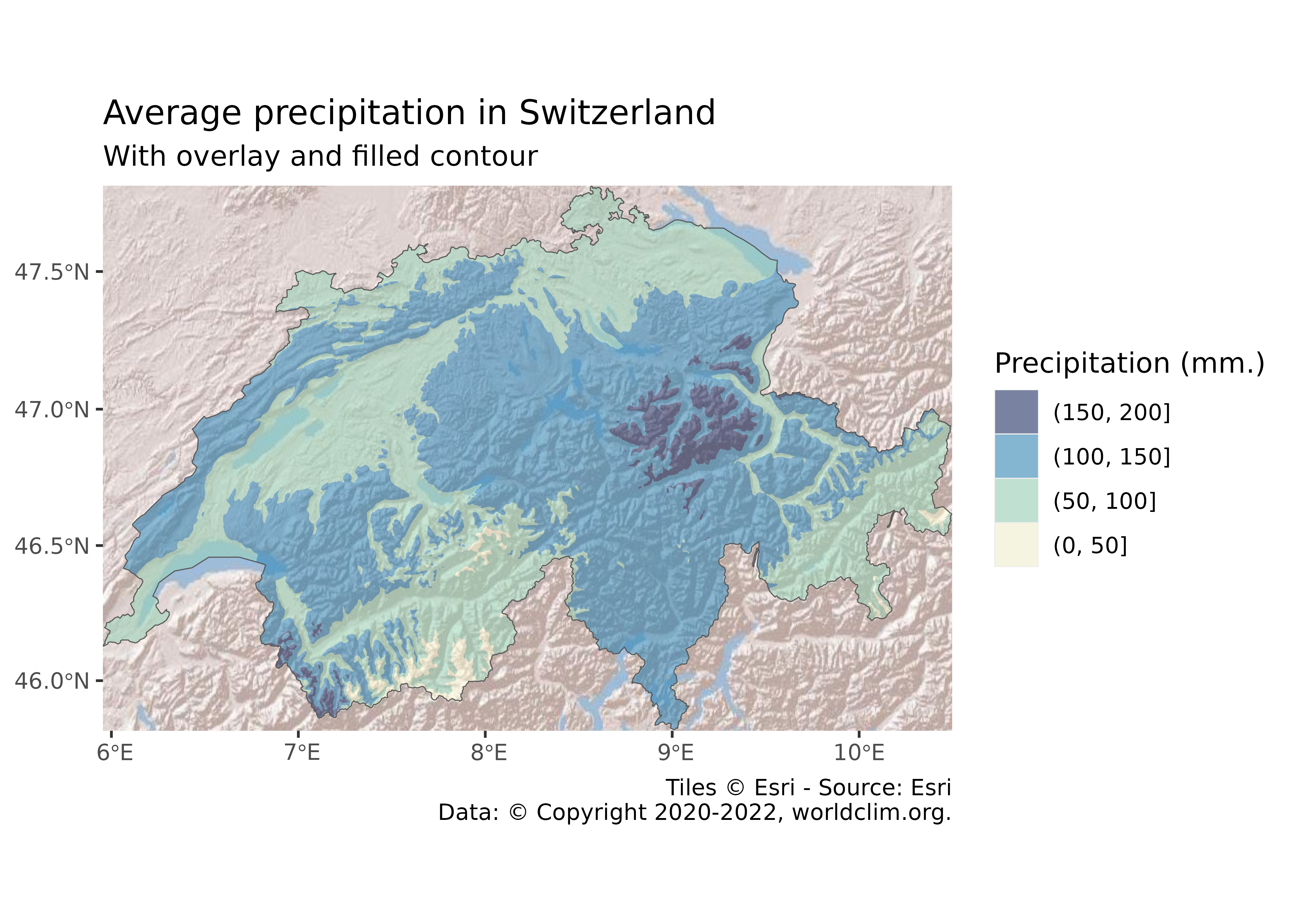

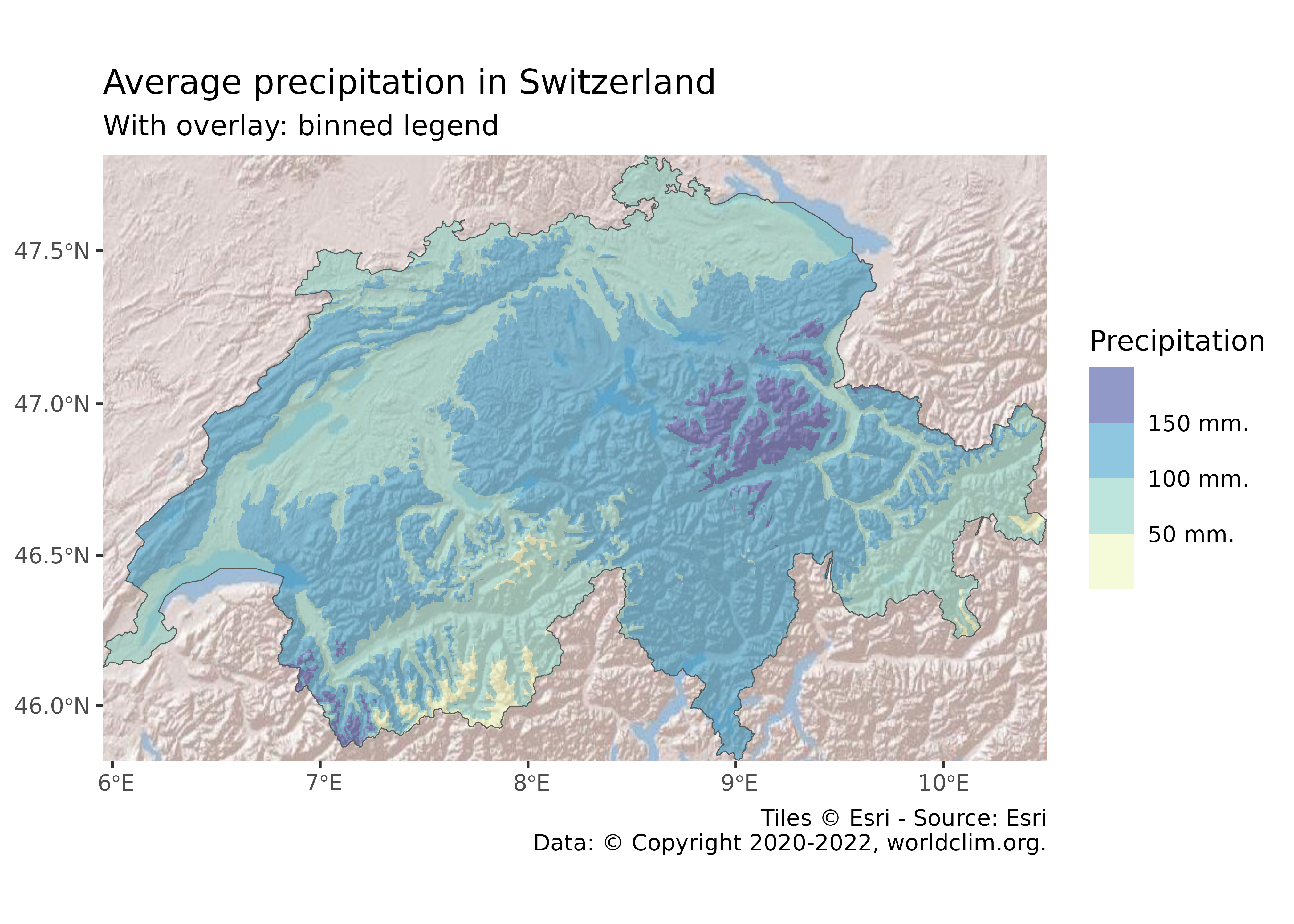

(a) Binned precipitation legend.

(b) Contour representation.

Figure 12: Alternative overlay approaches

Hexagonal grids (and other geoms)

While SpatRaster cells are inherently rectangular, you can create plots with hexagonal cells using fortify.SpatRaster() and stat_summary_hex(). The final plot requires coordinate adjustment with coord_sf():

library(terra)
library(tidyterra)
library(ggplot2)

holyrood <- "holyroodpark.tif"

r <- rast(holyrood)

# With hex grid
ggplot(r, aes(x, y, z = elevation)) +
  stat_summary_hex(
    fun = mean,
    color = NA,
    linewidth = 0,
    # Bins size determines the number of cells displayed
    bins = 30
  ) +
  coord_sf(crs = pull_crs(r)) +
  labs(
    title = "Hexagonal SpatRaster",
    subtitle = "Using fortify (implicit) and stat_summary_hex",
    x = NULL,
    y = NULL
  )

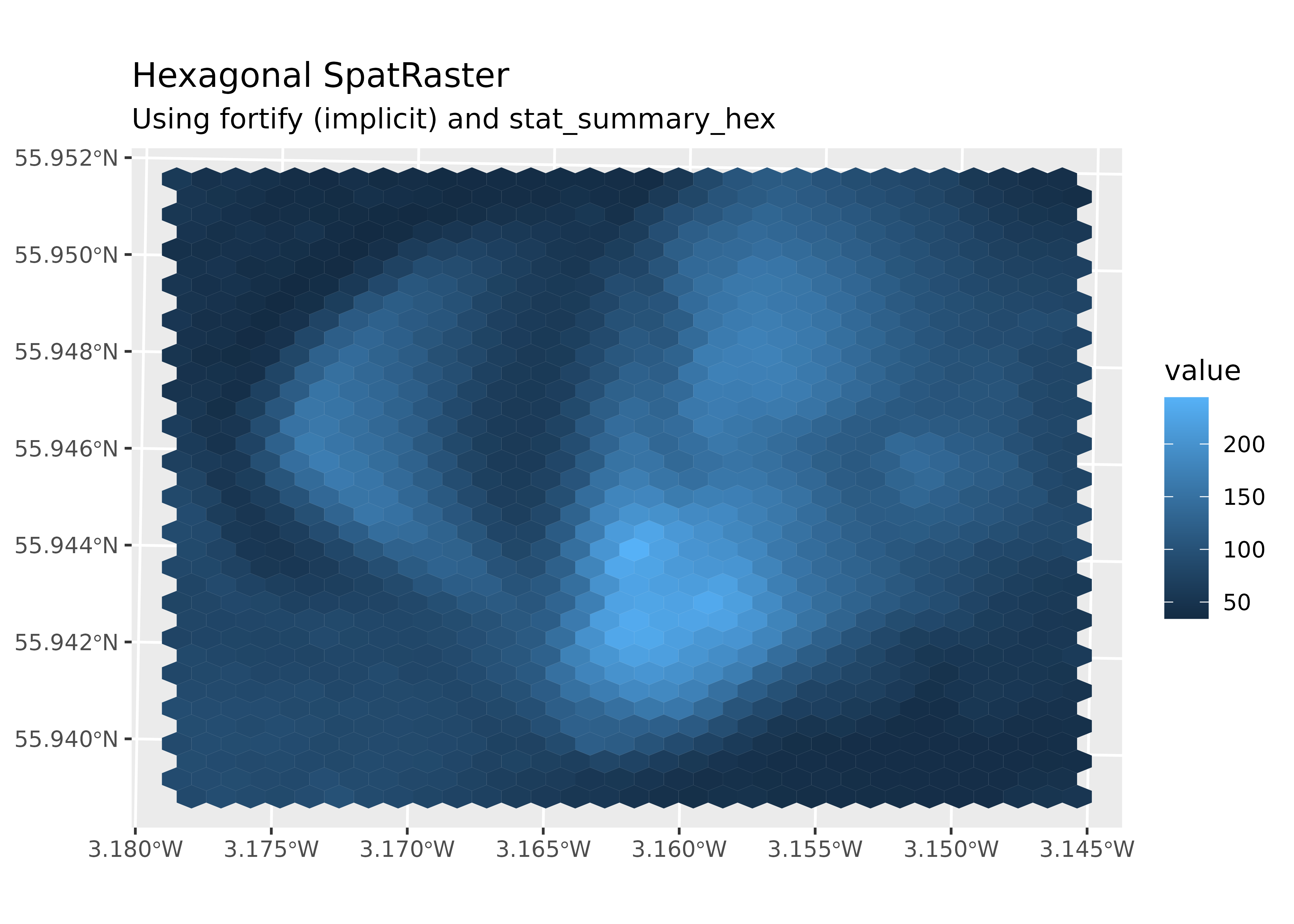

Figure 13: Elevation data aggregated and visualized as hexagonal grid cells.

Note that you do not need to call fortify.SpatRaster() directly; ggplot2 invokes it implicitly when you use ggplot(data = a_spatraster).

Thanks to this extension mechanism, you can use additional geoms and stats from ggplot2:

# Point plot
ggplot(r, aes(x, y, z = elevation), maxcell = 1000) +
  geom_point(
    aes(size = elevation, alpha = elevation),
    fill = "darkblue",
    color = "grey50",
    shape = 21
  ) +
  coord_sf(crs = pull_crs(r)) +
  scale_radius(range = c(1, 5)) +
  scale_alpha(range = c(0.01, 1)) +
  labs(
    title = "SpatRaster as points",
    subtitle = "Using fortify (implicit)",
    x = NULL,
    y = NULL
  )

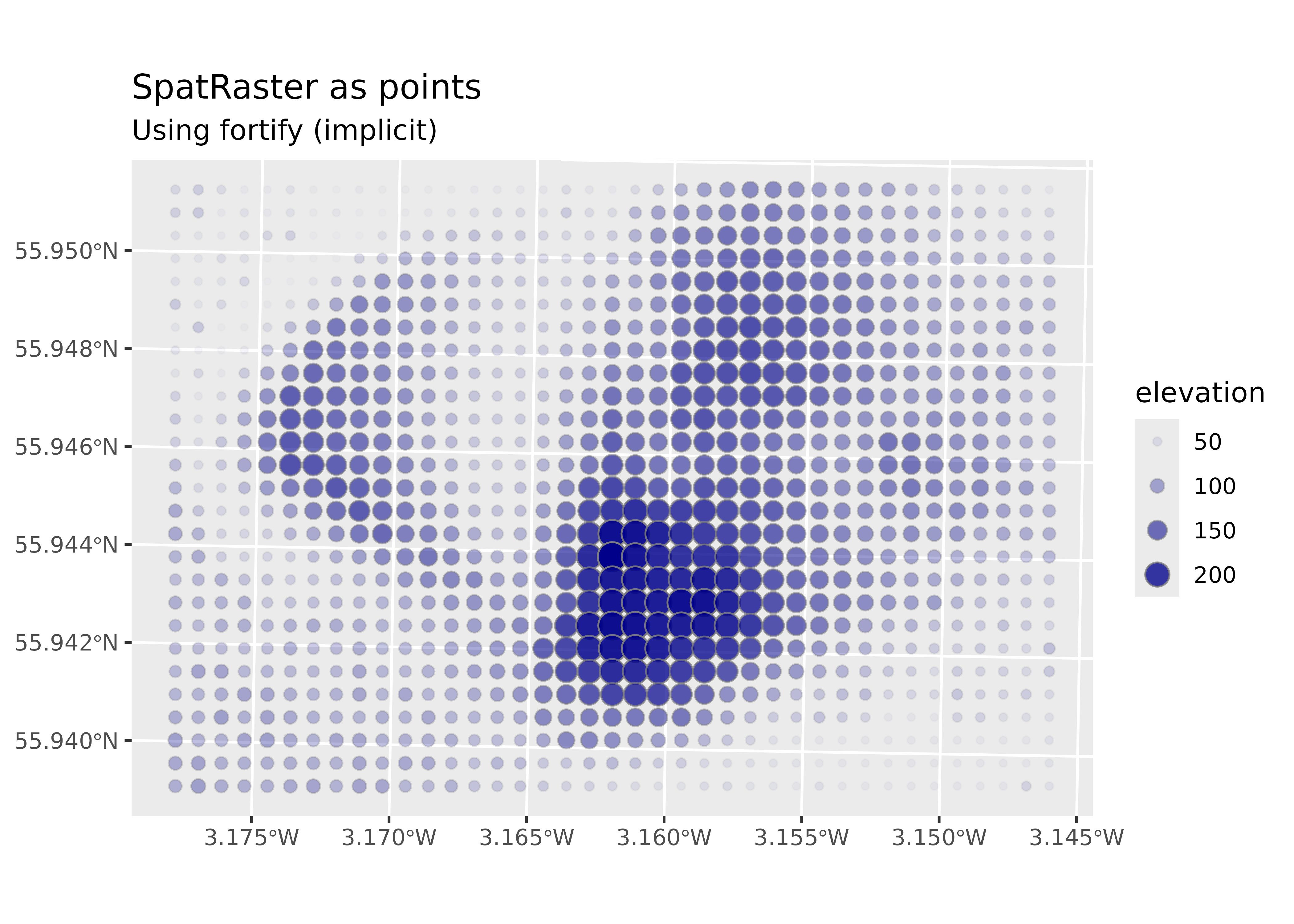

Figure 14: Elevation data represented as points with size and transparency scaled by elevation values.

tidyterra and metR

metR is a package that provides ggplot2 extensions, primarily for meteorological data visualization. As shown previously (see Labeling contours), you can combine both packages to create rich, complex plots.

# load libraries and files
library(terra)
library(tidyterra)
library(ggplot2)
library(metR)

holyrood <- "holyroodpark.tif"

r <- rast(holyrood)

ggplot(r, aes(x, y)) +
  geom_relief(aes(z = elevation)) +
  geom_spatraster(
    data = r,
    inherit.aes = FALSE,
    aes(alpha = after_stat(value))
  ) +
  scale_fill_cross_blended_c(breaks = seq(0, 250, 25)) +
  scale_alpha(range = c(1, 0.25)) +
  guides(alpha = "none", fill = guide_legend(reverse = TRUE)) +
  labs(x = "", y = "", title = "tidyterra and metR: reliefs")

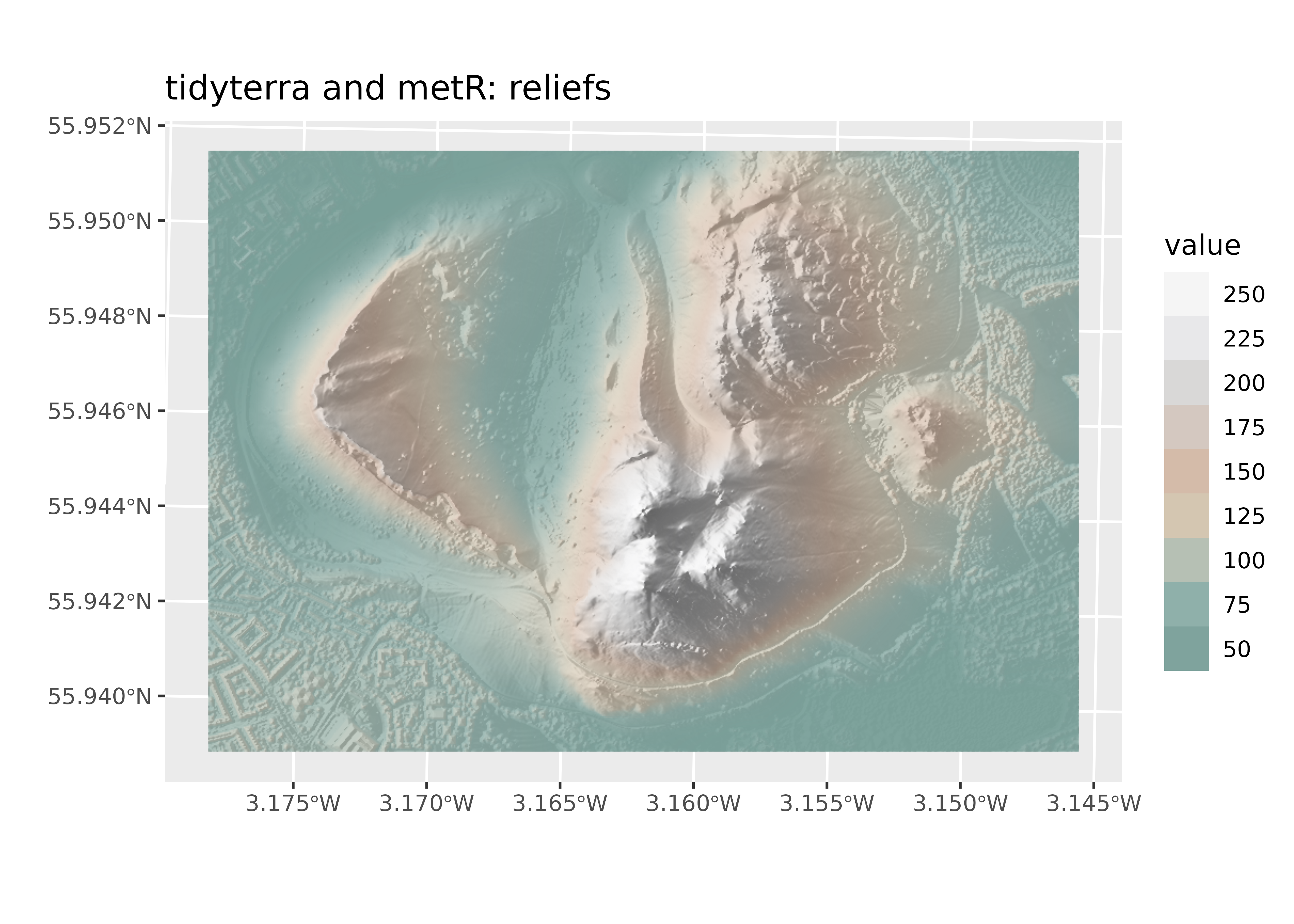

Figure 15: Relief rendering combining tidyterra for raster visualization and metR for terrain relief representation.
